Sol-Ark 5k-1P-N Hybrid Inverter

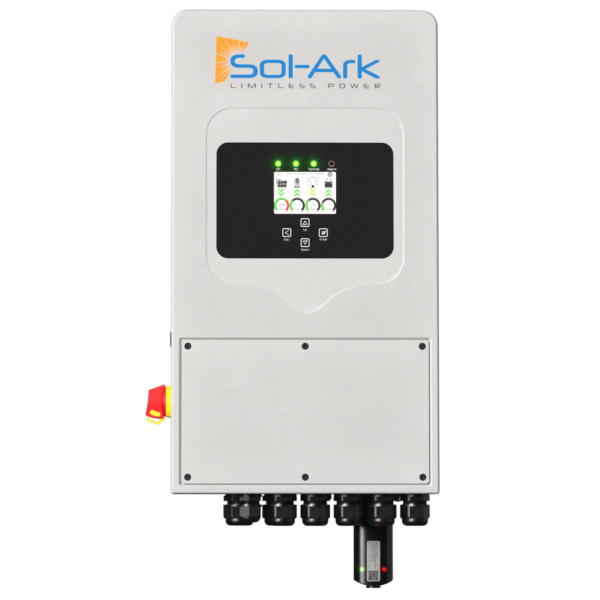

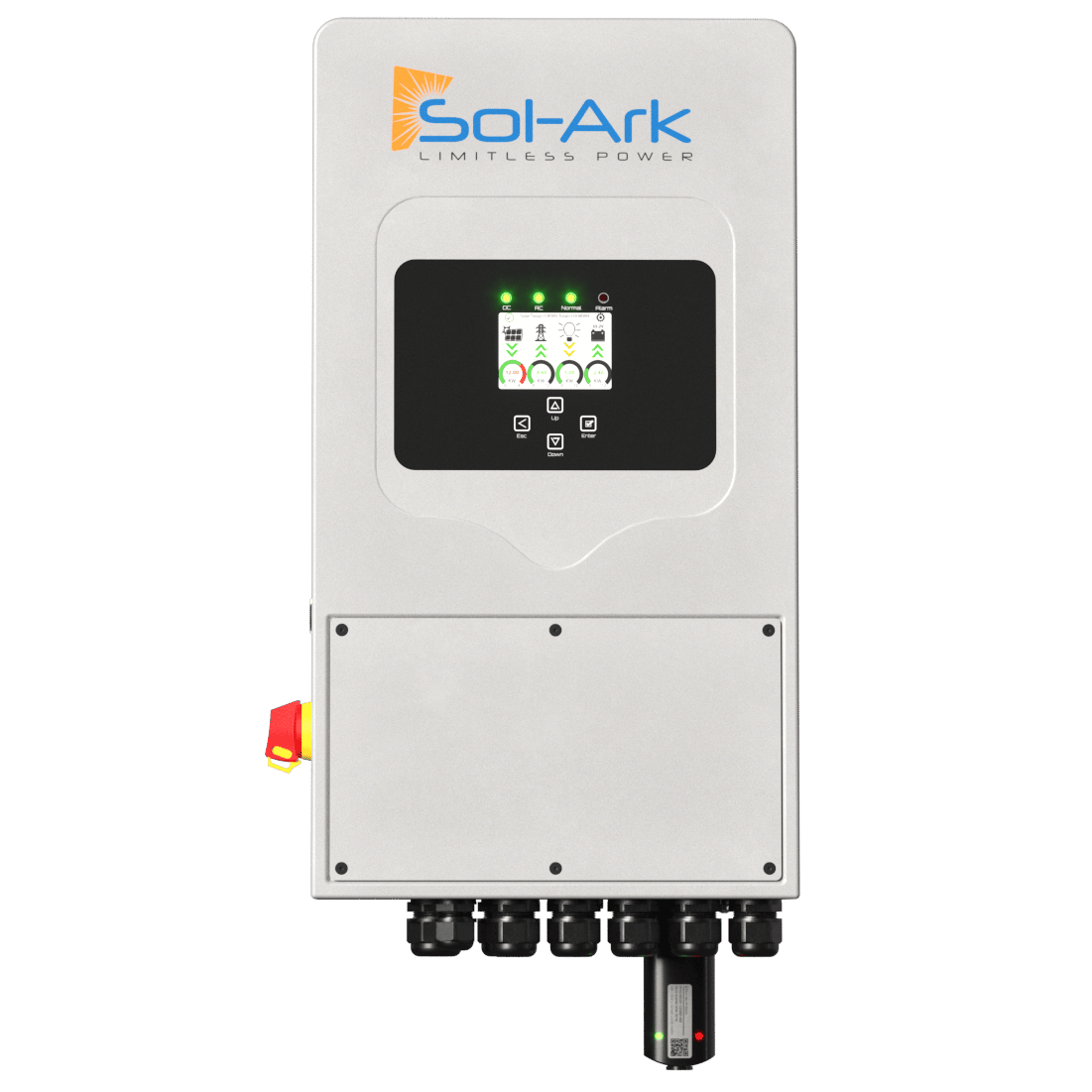

Sol-Ark 5K-1P-N Hybrid Inverter System

Sol-Ark 5K Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or battery backup solar system, while being able to manages power to and from Solar, Battery, Grid, Loads, and Generator.

SA-5K-1P-N Features:

  • Simple to install with touchscreen interface
  • Grid Tied Mode: Sell your power to reduce electric bill
  • Meter Zero Mode: Zero your electric bill without a smart meter
  • Time of Use: Use solar and batteries to minimize grid power usage
  • Programmable Smart Load Mode
  • DC and AC Coupling
  • Works with a wide range of battery chemistries – Lead acid to Lithium

SA-5K-1P-N Specifications:

  • AC Voltage: 120V single phase
  • AC frequency: 60/50 Hz
  • Max allowed PV power: 10,400 Watts
  • MPPT Voltage range: 125-425V
  • PV input Voltage: 370V (100~500V)
  • PV input current: 20A + 20A
  • Rated AC output: 4,800 Watt
  • Inverter efficiency: 97.6%
  • Weight: 51 lbs
  • Dimensions (H x W x D): 22.8″ x 13.0″ x 9.1″

5 Year Standard Warranty
