Description

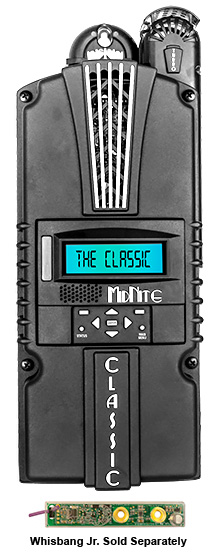

MidNite Solar CLASSIC 150-SL MPPT Charge Controller, Solar Only
FEATURES:
- 150 operating voltage
- Max current out: 96 amps
- ETL listed to UL1741 and CSA
- Type 1 environmental rating
- Terminals are rated for 75 C
- Exclusive HyperVOC extends VOC limits
- 12-72V battery
- Built in DC-Ground Fault Protection
- Optional Battery Sensor for temperature correction on battery charging
- 2 Aux Ports
- Follow-Me function
- Solar only
The CLASSIC 150-SL MPPT Charge Controller is a simplified SOLAR ONLY version of the CLASSIC 150 with streamlined menus. The CLASSIC 150-SL has a graphics panel and ground fault, but no arc fault, Ethernet capability, or Auto EQ. The CLASSIC 150-SL has a maximum output current of 96 amps, an operating voltage of 150 volts and works with 12 to 72 volt battery systems. As with the whole CLASSIC Line, the CLASSIC 150-SL has MidNite’s exclusive HyperVOC which extends VOC limits when needed. With a streamlined menu, these SOLAR only MPPT charge controllers are easy to setup and a breeze to install!
Specifications
- Warranty – 5 yrs.
- Listed by ETL for US & Canada
- CE Certified Listed
- FCC Class B Listed
- Made in the USA
Maximum Output Current for the CLASSIC 150-SL
- At 12V = 96 Amps
- At 24V = 94 Amps
- At 48V = 86 Amps
- At 72V = Not Recommended
